If you need a fleck 5600sxt install shared septic drain field game plan, the short answer is this: route the softener's brine discharge to a dedicated dry well, sump basin, or above-ground discharge point whenever your jurisdiction allows it, downsize regeneration salt dosage to under 6 lbs per cubic foot, and switch the valve to a metered (demand-initiated) regeneration cycle so you only flush brine when actually needed. Shared drain fields are sensitive to sodium loading and hydraulic surges from multiple homes, so the goal of a smart fleck 5600sxt install shared septic drain field setup in 2026 is to keep salty backwash off the leach lines while still softening hard well water at the point of entry.
Why Shared Septic Drain Fields Change the Install
A standard Fleck 5600SXT install dumps brine waste (roughly 35-65 gallons per regeneration, with chloride concentrations between 5,000 and 12,000 ppm) into the home's drain line. When the drain field is private and oversized, the soil column can usually absorb that load. Shared drain fields - common in cluster subdivisions, family compounds, duplexes, and rural co-ops - serve two to six houses on one leach bed. That means the field sees compounded brine loading, more biomat stress, and a much higher risk of sodium dispersion damaging the soil's percolation rate.
Drain field failure in a shared system is not just inconvenient - it is shared liability. So before you uncrate the Fleck 5600SXT control valve and resin tank, do three things: (1) confirm the septic permit on file lists how many bedrooms and households the field is sized for, (2) check your county code for whether softener discharge to the septic is even permitted (a growing number of jurisdictions banned it in 2024-2026), and (3) measure raw water hardness and iron with a real test, not a strip from the hardware store.
Pre-Install Water Testing and Pre-Filtration
The Fleck 5600SXT is an ion-exchange softener, not an iron filter. If your shared well or cluster water source has more than 0.3 ppm of dissolved iron or any manganese, you will foul the resin within months and have to regenerate more often - which puts more brine into a drain field you are already trying to protect. A proper fleck 5600sxt install shared septic drain field sequence almost always means adding a sediment/iron prefilter ahead of the softener.

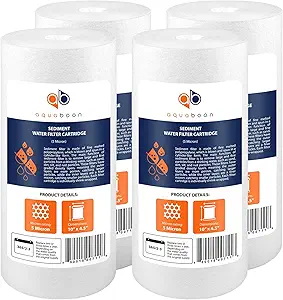

Pre-Filter Pick: Aquaboon 5 Micron 10x4.5 Sediment Filter (4-Pack)
For a low-cost first stage that strips sand, rust flakes, and biofilm chunks before they reach your softener resin, a Big Blue housing with 5-micron melt-blown cartridges is the standard. The Aquaboon 4-pack covers about a year of changes on a moderately silty well and prevents the kind of sediment fouling that triggers premature regen cycles. View the Aquaboon 5 Micron sediment filter pack on Amazon.

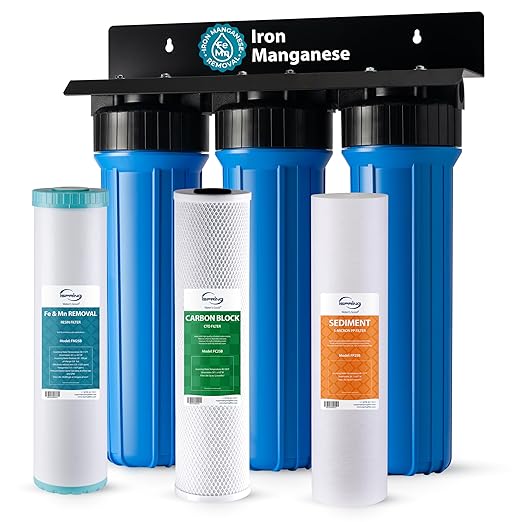

Iron Removal Pick: iSpring Iron & Manganese Whole House System
If your test came back with 0.5-3 ppm iron or any manganese staining, install a dedicated iron filter before the Fleck. The iSpring iron and manganese system uses an oxidizing media bed that backwashes with plain water (no brine, no salt), so it does not add a sodium load to the shared drain field. Putting it upstream protects the softener resin and dramatically extends the time between Fleck regenerations. See the iSpring iron and manganese system on Amazon.

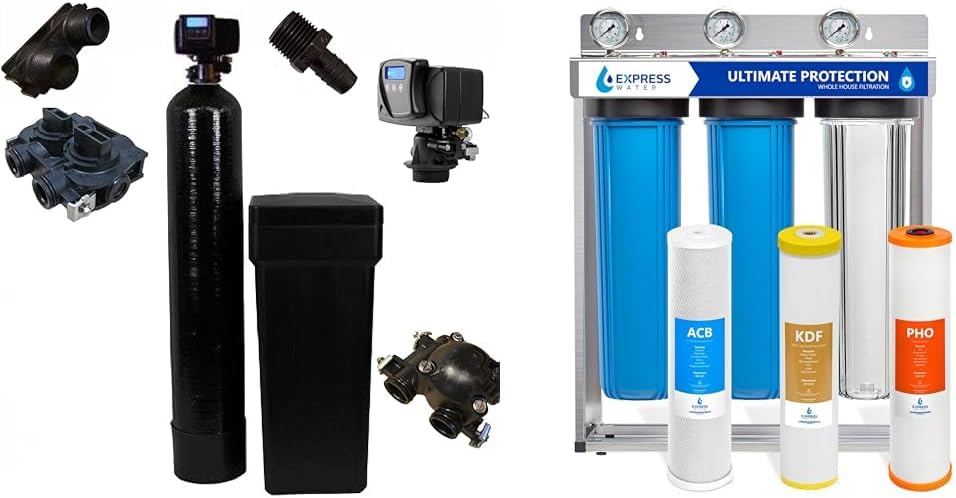

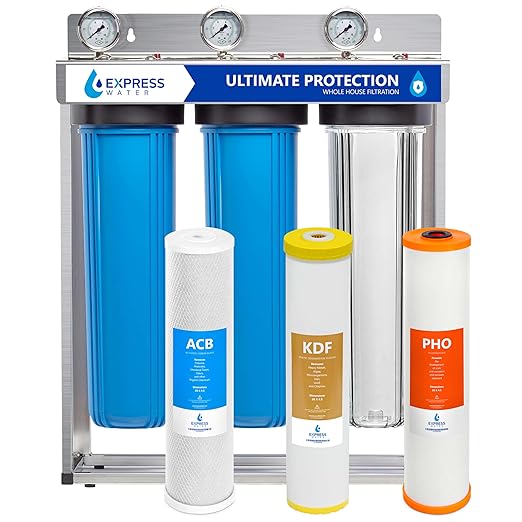

Sediment + Carbon Combo Pick: Express Water 3-Stage System
For chlorinated cluster systems or shared wells with a UV/chlorinator upstream, the Express Water 3-stage (sediment + KDF + carbon block) is a clean way to pre-treat before the Fleck while also removing taste, odor, and trace chlorine that would otherwise oxidize the softening resin. Check the Express Water 3-Stage Whole House system on Amazon.

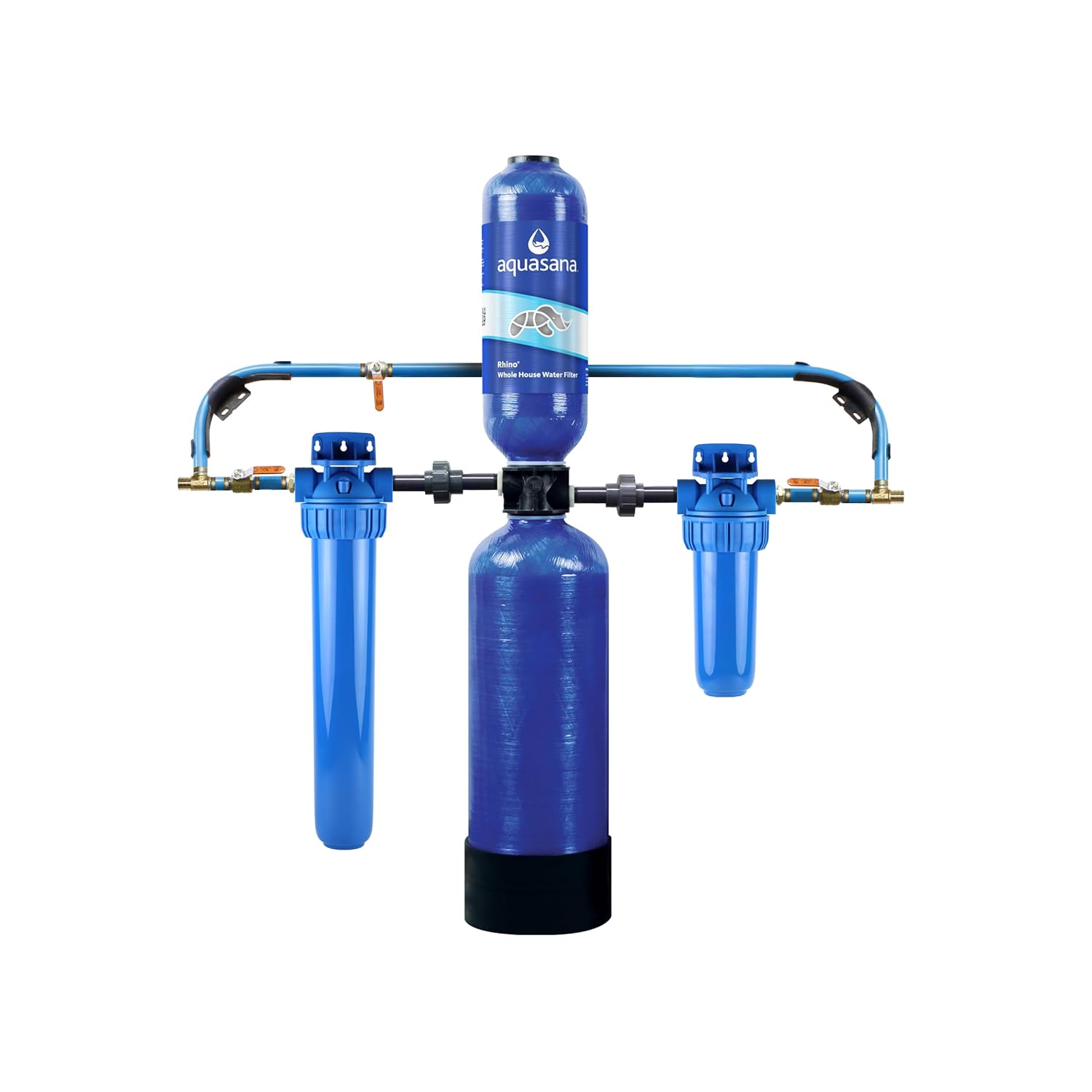

Heavy-Duty Alternative: Aquasana 500K UV+Carbon+KDF Well Water System
For shared rural systems where biological contamination is a worry, Aquasana's 500K-gallon well water system bundles UV with carbon and KDF, meaning your Fleck sees disinfected, low-organic water and the resin bed lasts noticeably longer. The longer resin life again means fewer brine discharges into the drain field over the system's lifetime. View the Aquasana 500K well water system on Amazon.
Budget Triple-Stage Pick: HQUA WF3-01 3-Stage System
If you want triple-stage pre-treatment without the Express Water price tag, the HQUA WF3-01 is a compact alternative that handles sediment plus carbon polishing well for shared single-family loads under 5 GPM. See the HQUA WF3-01 3-stage system on Amazon.
Pre-Treatment Comparison Table
| Pre-Treatment | Best For | Backwashes to Drain? | Septic-Field Friendly |
|---|---|---|---|
| Aquaboon 5 Micron Sediment (4-pack) | Sand, rust flakes, silt | No (cartridge swap) | Excellent - zero discharge |
| iSpring Iron & Manganese | 0.5-3 ppm iron, Mn staining | Yes (plain water only) | Good - no salt added |
| Express Water 3-Stage | Chlorine taste, sediment, light iron | No (cartridges) | Excellent |
| Aquasana 500K UV+KDF | Bacterial risk, organics | No | Excellent |
| HQUA WF3-01 3-Stage | Budget polish before Fleck | No (cartridges) | Excellent |
Step-by-Step: Fleck 5600SXT Install for Shared Septic Drain Fields
Step 1: Choose the Discharge Strategy
This is the single most important decision in a fleck 5600sxt install shared septic drain field project. You have four realistic options in 2026:
- Dedicated dry well or seepage pit for brine - typically a 4 ft diameter, 6 ft deep gravel-filled pit at least 50 ft from any potable well and 20 ft from the leach field. Best long-term answer where codes allow.
- Above-ground splash basin to landscape - only legal in some jurisdictions and only with low-salt potassium chloride regen. Not recommended near vegetable gardens.
- Holding tank with periodic pump-out - a sealed barrel with a level switch. Adds operating cost but is the only choice in some restrictive HOAs.
- Discharge to septic with mitigation - allowed if you (a) use potassium chloride instead of sodium chloride, (b) run metered regen at the lowest salt setting, and (c) the septic tank is 1,000+ gal with effluent filter.
Step 2: Locate and Mount the Softener
Install the Fleck 5600SXT after the pressure tank, after the sediment/iron prefilters, and before any hot water heater. Maintain 3 ft of clearance to the front of the valve for service. Place the brine tank within 20 ft of the resin tank - longer brine line runs slow draw-down and can leave salt in the resin between cycles, which translates to longer rinse times and more discharge.
Step 3: Plumb the Bypass Valve
Use the included 5600SXT plastic bypass or upgrade to a brass 3/4" or 1" bypass. Solder unions away from the valve head (heat will warp the plastic), then connect with SharkBite or threaded adapters. Always leave a true bypass in place - shared-field systems should be capable of going around the softener instantly if a regen valve fails.
Step 4: Run the Drain Line to Your Chosen Discharge
Use 1/2" reinforced poly tubing for the DLFC (drain line flow control). Keep total run under 20 ft horizontal and under 6 ft of elevation rise. Code requires an air gap - never hard-pipe into the septic line. If you are using a dry well, the line can free-fall through a vented cap. If you are sending it to a holding tank, install a check valve and a high-level float switch wired to a household alarm.
Step 5: Install the Brine Line and Overflow
The 3/8" brine line goes from the safety float on the brine tank to the valve. The brine tank overflow (a separate fitting on the side of the salt tank) MUST be routed to the same air-gapped discharge point as the main drain line. On shared drain field installs, plumbers often forget the overflow and end up with 50 gallons of saturated brine on the basement floor.
Step 6: Program the 5600SXT for Low-Salt Metered Regen
This is the part that separates a careless install from a drain-field-friendly one:
- DF: set to Gal (gallons)
- VT: dF1b (downflow, single backwash)
- CT: Fd (meter delayed)
- C: set capacity to 75-80% of resin rated capacity to leave reserve
- H: hardness from your test in grains
- RS: SF (safety factor) at 20%
- DO: day override at 14 (forces a rinse every 14 days even if not triggered)
- BW: backwash 6 minutes (down from default 10 - saves 20+ gallons per cycle)
- BD: brine draw & slow rinse 50 minutes
- RR: rapid rinse 4 minutes
- BF: brine refill calculated for 6 lbs/cu ft salt dose
At 6 lbs/cu ft instead of the default 15, you cut sodium discharge by roughly 60% while still hitting 24,000+ grains of capacity per cubic foot of resin.
Step 7: Disinfect, Pressurize, and Commission
Load resin and gravel underbed dry, fill the tank with water (slowly to wet the resin without channeling), seat the riser tube and O-ring, and thread the valve on by hand only. Open the bypass slowly to pressurize, then trigger a manual regen at the valve and watch each cycle complete with no leaks at the drain line or brine overflow.
Salt Choice Matters More on Shared Fields
Switch from sodium chloride to potassium chloride pellets if your discharge ultimately reaches the shared field. Potassium is actually a soil nutrient at low concentrations and does not cause the structural collapse (dispersion) that sodium does. It costs 3-4x more per bag, but on a low-salt-dose Fleck running on metered regen you will only use 6-8 bags a year for a family of four.
Coordinating With Your Neighbors
If your drain field is genuinely shared - meaning your neighbor's blackwater hits the same leach lines - tell them before the install. Two softeners regenerating on the same shared field on the same night can overwhelm the soil's recovery window. Stagger regen times (the 5600SXT lets you set a regen clock time; pick 2 AM for one house, 4 AM for the other). For more on coordinating cluster water systems, see our guide to shared well water treatment for cluster homes and the deeper dive on softener discharge options for septic systems.
Maintenance and Long-Term Drain Field Protection
Once installed, the Fleck 5600SXT needs almost nothing month to month. But for shared field protection: (1) check salt level every 4 weeks and never let the brine tank run dry (a starved cycle dumps unsoftened water and triggers a wasted rinse), (2) replace prefilter cartridges on schedule (a clogged sediment filter raises differential pressure and can trip false regen), and (3) verify the meter is accurate annually by comparing a known fill volume against the SXT's totalizer. For additional context on annual servicing, see our whole house filter maintenance checklist and the related well water iron removal buyer's guide.
Frequently Asked Questions
Can a Fleck 5600SXT legally discharge into a shared septic system in 2026?
It depends on the jurisdiction. As of 2026, Michigan, Massachusetts, Texas (parts), and several California counties either restrict or outright ban softener brine into septic systems, especially shared ones. Always check with your county health department before piping brine into the septic line. When in doubt, route to a dedicated dry well or holding tank instead.
How much salt does a properly tuned Fleck 5600SXT actually add to a shared drain field?
A metered Fleck regenerating once a week at 6 lbs/cu ft on a 1.5 cu ft tank discharges about 9 lbs of salt per cycle, or roughly 470 lbs per year per household. Multiply that across two or three households on one field and you can see why low-salt programming and potassium chloride matter so much.
Do I need a separate iron filter before the Fleck if my shared well has 1 ppm iron?
Yes. Above 0.3 ppm dissolved iron, the resin fouls quickly and regeneration frequency climbs - which means more brine to the shared field. An upstream iron filter (oxidizing media, backwashing on plain water only) is the cleanest fix. The Fleck downstream then handles only hardness.
What size Fleck 5600SXT do I need for two houses on a shared drain field?
Two-house demand typically runs 800-1,200 gallons per day. Size for 1.5-2.0 cu ft of resin with a 13x54 tank. That gives enough capacity to regenerate only every 5-7 days even at 6 lbs/cu ft salt dose - which keeps brine discharge events to a minimum.
Can I install the Fleck 5600SXT myself or do I need a licensed plumber?
The valve and bypass install is DIY-friendly with basic plumbing skills. However, the discharge plumbing - whether to a dry well, holding tank, or septic line - usually requires a permit and inspection in jurisdictions that regulate softener discharge. Pull the permit; an unpermitted brine discharge can void homeowner's insurance if the shared field later fails.
Will switching to potassium chloride hurt the Fleck 5600SXT?
No. The Fleck valve and SST-60 resin are fully compatible with potassium chloride. You may need to bump the salt dose up about 10% to get equivalent regeneration efficiency, but the resin life and valve life are unchanged. The drain-field benefit is significant: potassium does not cause sodium-induced soil dispersion.
How do I know if my shared drain field is already being damaged by softener discharge?
Warning signs include soggy spots over the leach lines that persist after dry weather, slow drains throughout the house, sewage odors in the yard, and grass that is unusually lush or unusually dead directly over the field. A perc test in a representative area will show whether sodium dispersion has reduced soil permeability - if so, stop discharging to the field immediately and reroute to a dry well or holding tank.
